Filtration is one of the oldest and most important processes in industries that need to separate solids from liquids. Among the many technologies available today, the Filter Press stands out as one of the most effective tools for achieving reliable and consistent solid-liquid separation. Whether in wastewater treatment, food processing, mining, or pharmaceuticals, the Filter Press has become a trusted solution for managing slurries and recovering valuable liquids.
This article explains in detail what a Filter Press is, how it works, its main components, the different types available, and why industries continue to rely on this technology. We will also explore modern advancements, compare filter press options, and share insights into how manufacturers such as Zhejiang Fujie Environmental Protection Equipment Co., Ltd. are innovating in this field.
A Filter Press is a piece of equipment used to separate solids from liquids through pressure filtration. It consists of a series of Filter Plates lined with Filter Cloth, clamped together in a frame. Slurry (a mixture of liquid and suspended solids) is pumped into the press. The liquid passes through the cloth and exits as filtrate, while the solids remain trapped inside, forming what is known as a filter cake.
This simple but powerful design makes the Filter Press highly effective in industries that require clean water, solvent recovery, or sludge dewatering.
The operation of a Filter Press can be broken down into clear steps:
Filling – Slurry is pumped into the chambers formed by the Filter Plates.
Filtration – Pressure forces liquid through the Filter Cloth while solids accumulate inside the chambers.
Cake Formation – Solids compact and form a filter cake, which continues to grow as more slurry is introduced.
Optional Washing – Clean water or other liquids may be flushed through the cake to remove impurities.
Cake Drying – Some presses, such as the Membrane Filter Press, squeeze or compress the cake to reduce moisture.
Cake Discharge – The press opens, and the dried cake is removed for disposal or reuse.
Cleaning – The Filter Cloth may be washed manually or automatically to prepare for the next cycle.
This cycle allows the Filter Press to achieve very high solid capture rates, often above 99%, and produce cakes with low moisture content.
A Filter Press is composed of several important parts, each of which plays a role in achieving efficient solid-liquid separation.
| Component | Description |
|---|---|
| Filter Plates | Rigid plates that form chambers to hold slurry. Available in chamber, frame, and membrane types. |
| Filter Cloth | Fabric that captures solids while letting liquid pass through. Choice of cloth affects performance. |
| Frame | Provides structural support and holds the plates together under pressure. |
| Hydraulic System | Powers the movement of plates and maintains the pressure during filtration. |
| Accessories | Includes pumps, washing systems, valves, and control cabinets for automation. |
Choosing the right combination of Filter Plates and Filter Cloth is critical to achieving the desired filtration efficiency, cake dryness, and cycle time.
There is no one-size-fits-all solution. Different types of Filter Press equipment have been designed to suit specific industries and slurry characteristics.
| Type of Filter Press | Features and Benefits |
|---|---|
| Plate and Frame Filter Press | The earliest design; versatile but less efficient compared to modern types. |
| Chamber Filter Press | Plates form recessed chambers; widely used for higher throughput and easy cake release. |

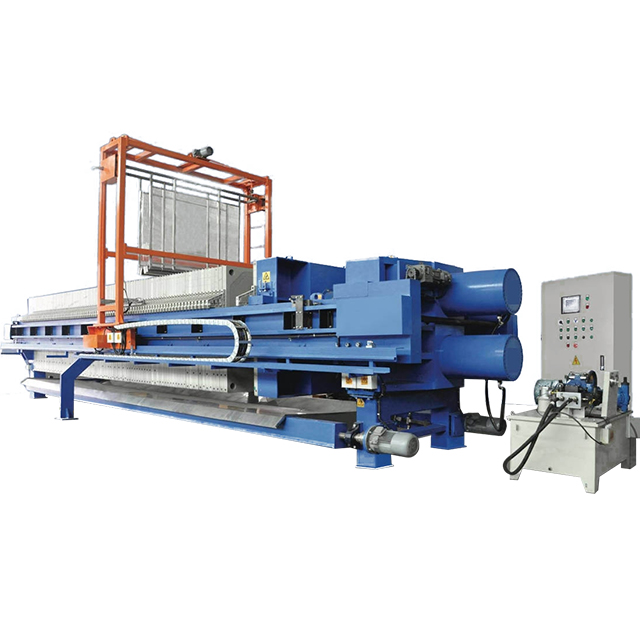

| Membrane Filter Press | Uses flexible membranes to squeeze the cake, reducing moisture and cycle time. |
| Automatic Filter Press | Includes automatic plate shifting, cloth washing, and cake discharge for 24/7 operation. |
| Food Grade Stainless Steel Filter Press | Designed for hygienic processes such as beverage, wine, or pharmaceutical production. |

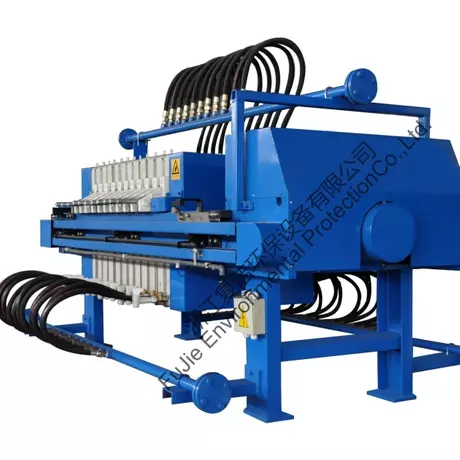

| Explosion-Proof Filter Press | Built with safety features for chemical or hazardous environments. |
For industries dealing with high-value liquids or requiring maximum cake dryness, the Membrane Filter Press and Automatic Filter Press are increasingly popular choices.
The versatility of the Filter Press explains its wide adoption. Here are some of the key industries where it is commonly used:
Mining & Minerals – Dewatering mine tailings and recovering process water.
Food & Beverage – Clarifying juices, wine, and edible oils using Food Grade Filter Press systems.
Pharmaceuticals – Filtering active ingredients and removing impurities with precise Filter Plates.
Municipal Wastewater Treatment – Sludge dewatering to reduce disposal costs.
Chemicals – Filtering pigments, dyes, and chemical intermediates.
Metallurgy & Precious Metals – Recovering valuable materials with Stainless Steel Filter Press units.
When selecting a Filter Press, users must balance cost, efficiency, and durability. Below is a comparison of popular options:
| Type | Cost Level | Moisture Content of Cake | Automation Level | Best For |
|---|---|---|---|---|
| Plate & Frame | Low | Medium | Manual | General filtration, small operations |
| Chamber Press | Medium | Lower than plate & frame | Semi-automatic | Medium to large industrial processes |
| Membrane Filter Press | Higher | Very Low | Automatic | Mining, chemicals, high-value products |
| Automatic Filter Press | Highest | Very Low | Fully Automatic | Continuous industrial operations |
This data shows why many industries are shifting toward Membrane and Automatic Filter Press designs despite their higher initial costs—they deliver faster cycles, lower operating costs, and drier cakes.
The Filter Press remains a trusted choice because of several key advantages:
High solids capture rate and very clear filtrate.
Ability to handle a wide variety of slurries.
Production of dry, compact filter cakes that reduce disposal costs.
Flexibility through different Filter Plates and Accessories.
Scalability, from small laboratory presses to large industrial systems.
Long service life with proper maintenance of Filter Cloth and hydraulics.
The filtration industry continues to evolve with new innovations. Some of the latest trends include:
Automation – Increasing use of Automatic Filter Press systems with PLC controls and remote monitoring.
Membrane Technology – Adoption of Membrane Filter Press designs for faster cycle times and drier cakes.
Sustainability – Using filter presses for resource recovery, recycling water, and reducing waste disposal.
Advanced Materials – Development of stronger, more chemical-resistant Filter Plates and Filter Cloth.
Energy Efficiency – Lower power consumption designs and smarter hydraulic systems.
These innovations reflect the growing importance of environmental protection and cost reduction in industries worldwide.
One of the companies leading advancements in this field is Zhejiang Fujie Environmental Protection Equipment Co., Ltd.. Founded in 2016, the company specializes in solid-liquid separation equipment, sludge dewatering systems, and a full range of Filter Press Accessories.

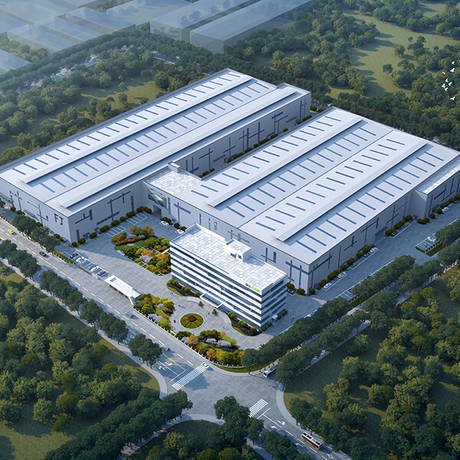

With state-of-the-art production facilities, including ultra-large hydraulic presses and advanced machining centers, Zhejiang Fujie delivers high-quality Filter Plates and complete Filter Press systems that meet international standards. Their focus on research, innovation, and ISO-certified quality systems highlights how modern manufacturers are pushing the boundaries of filtration technology.
When selecting a Filter Press, it’s important to consider:
The type and volume of slurry.
Desired moisture content of the filter cake.
Space and installation requirements.
Level of automation required.
Long-term maintenance and availability of Accessories.
For example:
A small-scale food producer might prefer a Stainless Steel Food Grade Filter Press.
A mining company processing large slurry volumes would benefit from a Membrane Filter Press.
A municipal treatment plant would prioritize an Automatic Filter Press for continuous operation.
The Filter Press is a simple yet powerful technology that continues to play a critical role in modern industry. By efficiently separating solids from liquids, it reduces waste, recovers valuable materials, and supports environmental sustainability.
From basic plate and frame presses to advanced Automatic Filter Press systems, businesses can choose equipment tailored to their unique needs. Innovations in Filter Plates, Filter Cloth, and automation are making filtration faster, cleaner, and more efficient.
For organizations seeking reliable solutions, working with experienced manufacturers such as Zhejiang Fujie Environmental Protection Equipment Co., Ltd. ensures access to high-quality equipment and long-term support.
With its proven performance, adaptability, and ongoing innovation, the Filter Press remains one of the most important tools in industrial filtration today.
