Ever wondered how industries separate liquids from solids so precisely? A plate and frame filter press is one of the oldest yet most effective methods. It’s still widely used in chemical, food, and wastewater applications today. In this post, you’ll learn what it is, how it works, and why it remains essential in modern filtration systems.

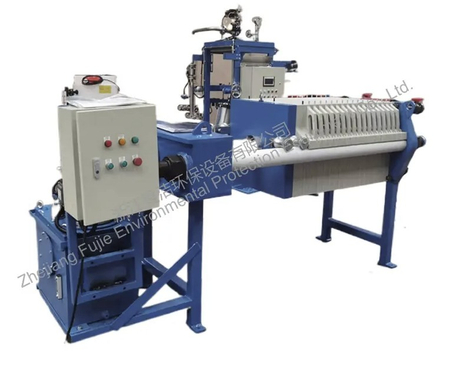

A plate and frame filter press is a machine that separates solids from liquids. It does this by squeezing slurry between a series of flat plates and hollow frames. Each frame forms a chamber where the solid particles collect, creating a filter cake. Meanwhile, the clean liquid—called the filtrate—passes through a filter cloth and exits the system. This design is simple yet powerful, making it useful in chemical plants, food factories, and wastewater facilities.
Understanding a few key terms makes the process clearer:
Slurry: A mixture of solids and liquids that enters the press.
Filtrate: The purified liquid that passes through the filter medium.
Filter Cake: The solid residue left behind after filtration.
Pressure Filtration: The driving force that pushes the slurry through the cloth, separating solids from liquids.
These terms describe how each part of the system works together. In short, pressure moves the slurry, cloths trap the solids, and plates shape the final filter cake.
A plate and frame filter press may look simple, but every part plays a key role. Its structure combines strength, pressure control, and flexibility, allowing it to handle different slurries and filtration goals.
Let’s break down what’s inside:
The plates are solid, flat surfaces that support the filter cloths. The frames are hollow sections creating chambers where solids collect. When pressed together, they form sealed cavities that trap the filter cake. Older designs used cast iron or wood; modern presses rely on polypropylene for lightness and chemical resistance.

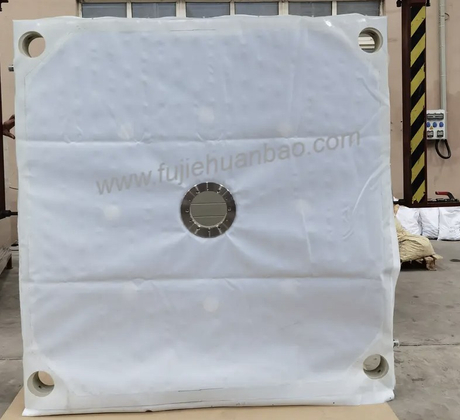

Filter cloths are the “heart” of the system. They let clean liquid pass while keeping solids inside the frame. Depending on the process, we can use woven fabrics, paper, or microporous membranes. Some applications even combine filter cloths and disposable paper layers for ultra-fine filtration.
This part does the heavy lifting. Hydraulic cylinders or mechanical screws push the plates and frames together. It maintains consistent pressure—usually between 350–500 kN/m²—so no leakage occurs during filtration. Automatic systems adjust pressure and open the plates when filtration ends.
Each corner has feed holes guiding slurry into the frames. Clean filtrate exits through dedicated discharge ports on the plates. By controlling these flow paths, the system ensures smooth feeding and even pressure across all chambers.
| Component | Common Materials | Key Features |
|---|---|---|
| Plates / Frames | Polypropylene, Cast Iron, Stainless Steel | Strength, temperature resistance, low weight |
| Filter Cloths | Polyester, Cotton, Nylon | Reusable, fine filtration precision |
| Hydraulic System | Steel cylinders, Sealing gaskets | Consistent clamping pressure |
Material choice matters.
Polypropylene offers corrosion resistance and is easy to clean.
Cast iron suits high-pressure, high-temperature environments.
Stainless steel resists acids, solvents, and is preferred in food or pharmaceutical production.
We pick materials based on what kind of slurry it handles and how hot or corrosive it is.
Modern presses use a modular frame design, making assembly and maintenance easier. The skeleton holds all plates on a horizontal beam, allowing quick plate shifting after each cycle. Larger units may include drainage troughs, cake hoppers, or safety guards under the press.
Automation takes things further. Systems can feature automatic plate shifters, cloth washers, or programmable hydraulic control units. These upgrades reduce manual labor, improve speed, and keep operators safe.
Below is a simple diagram showing how components connect:
[Feed Pump] → [Feed Port] → [Frame Chamber] → [Filter Cloth] → [Filtrate Outlet] → [Discharge Line]
Each step is compact and aligned to keep the process clean, efficient, and reliable.
The process starts when slurry is pumped into the press under pressure. As the liquid moves through the filter cloth, solids stay behind inside the frame. Over time, these solids build up and form a thick layer known as a filter cake. When the frames are full, pressure is released, and the plates open. The filter cakes fall out for collection or disposal, while the clear filtrate can be reused or treated further. Some systems also include a washing step, where water or solvent removes impurities trapped in the cake.
Filtration Process Overview:
| Step | Description |
|---|---|
| A. Feeding | Slurry enters through a corner port under pressure. |
| B. Filtration | Liquid passes through the cloth; solids remain in the chamber. |
| C. Cake Formation | Solids build up, filling each frame evenly. |
| D. Discharge | Pressure releases; plates open, cakes drop out. |
| E. (Optional) Washing | Rinsing removes residual contaminants. |
This step-by-step cycle is repeated in batches, allowing precise control over filtration quality. Let’s walk through what happens inside the press:
Before filtration starts, the plates and frames are tightly clamped together. A hydraulic system locks them in place, forming leak-proof chambers. The filter cloths are inspected to ensure no tears or folds — even a small gap can cause leaks.
Once clamped, slurry is pumped in through a feed port under controlled pressure. The liquid flows evenly into every frame, filling the hollow chambers. Flow control is crucial here; too fast, and it can overload one frame while leaving others empty.
As pressure builds, solids begin to collect on the filter cloth surfaces.
They form thin layers that grow into a filter cake.The clear liquid, or filtrate, passes through the cloth and exits through discharge ports.
Inside each frame, filtration happens from both sides, producing two half-cakes that meet in the middle.
When the chambers are full, the pump stops, and the hydraulic pressure is released. The plates separate one by one, allowing the cakes to fall into collection hoppers below. Operators may use soft brushes or low-pressure sprays to clean off any remaining solids.
In some industries, purity matters — so the cakes are washed with clean water or solvent. Special channels guide the wash fluid across the plate surfaces. This step removes trapped impurities and improves product quality. After washing, air or steam may be passed through to dry the cake and reduce its moisture content.
There are two main ways to control how the filtration progresses:
In this mode, the slurry feed pump keeps flow rate steady. As the cake builds, pressure gradually increases to maintain that flow. It’s ideal when slurry composition changes or solids vary in size.
Here, the feed pressure stays fixed from start to finish. Flow rate decreases naturally as resistance grows inside the chambers. This method suits operations that need consistent quality and predictable cycle times.
A few things affect how well the press works:
Slurry concentration — too dense can cause clogging.
Filter cloth type — finer weaves improve clarity but reduce speed.
Feed pressure — higher pressure means faster filtration, but more wear on plates.
Cake thickness — determines cycle length and moisture level.
Operators balance these factors to get clean filtrate and optimal efficiency from every run.
A plate and frame filter press might seem old-fashioned, but it’s still one of the most precise and adaptable filtration tools available. Its design allows industries to control every stage — pressure, filter media, and cake thickness — for the cleanest possible results.
This type of press excels when accuracy matters. The alternating plates and frames create narrow chambers, which allow fine particles to be trapped efficiently. Using specialized filter cloths or paper media, it can remove extremely small solids from liquid streams. That’s why it’s often used for pharmaceutical liquids, chemical polishing, or food purification.
Performance Highlights:
Produces filtrate clarity often below 1% solid content.
Filter cakes reach moisture levels as low as 15–20%.
Works effectively for low-solid slurries and fine suspensions.
Not all processes need the same level of filtration. That’s where this system stands out — it lets operators choose different filter media and frame thicknesses. You can switch from a coarse woven cloth for faster flow to fine paper or membrane sheets for micro-filtration. Thicker frames create larger cakes for high-solid slurries, while thinner ones handle polishing jobs.
Configuration Options:
| Filter Media | Typical Use |
|---|---|
| Woven Cloth | General industrial filtration |
| Filter Paper | High purity, fine solids removal |
| Microporous Membrane | Laboratory or pharmaceutical-grade processes |
Despite its strong frame, the system has a compact footprint. It fits easily into production lines or labs where space is limited. Since it has few moving parts, maintenance is simple — clean the cloths, check the seals, and it’s ready for the next cycle. Modern versions even include automatic plate shifters and cloth washers to reduce downtime.
Maintenance Perks:
Quick cloth replacement between cycles.
Minimal mechanical wear over long-term use.
Easy access for inspection and cleaning.
Every drop of filtrate passes through a tightly controlled filtration layer. This ensures clean discharge that meets environmental standards. Industries can reuse the clear liquid, lowering water consumption and waste treatment costs. Some systems operate in closed-loop mode, preventing leaks or contamination during filtration.
Environmental Benefits:
Supports zero-liquid discharge (ZLD) systems.
Reusable filter media reduces disposable waste.
Helps facilities meet EPA and ISO water quality standards.
For specialty or low-volume processes, a plate and frame filter press is extremely cost-effective. It doesn’t require large-scale automation or continuous flow systems. You only run it when needed, saving energy and maintenance costs. Its modular structure also means users can add or remove plates to match production demand.
Cost-Saving Features:
Low energy consumption per batch.
Adjustable chamber numbers for capacity control.
Long lifespan when properly maintained.
This combination of precision, flexibility, and efficiency keeps the plate and frame filter press relevant — even in high-tech industries today.
While the plate and frame filter press delivers excellent filtration precision, it also has a few practical drawbacks. Because slurry enters through narrow corner ports, uneven pressure can sometimes occur, leading to clogging or plate damage. Its non-gasketed design may allow minor leakage during operation, especially under high pressure or with worn cloth edges. The system also works in batch mode, which limits throughput and requires frequent manual unloading and cleaning between cycles.
These factors make it more labor-intensive and less efficient for large-scale, continuous production — though many modern units now include automation features to reduce downtime and operator workload.
A plate and frame filter press is incredibly versatile. Its design adapts easily to different materials, pressures, and purity standards, making it a workhorse across many industries. From refining chemicals to clarifying beverages, it handles everything that involves separating solids from liquids.
In chemical plants, the press removes catalysts, pigments, and solid by-products from process fluids. It handles aggressive slurries containing acids, solvents, or high temperatures where corrosion resistance is essential. Engineers often choose stainless steel or polypropylene plates to withstand these harsh environments.
Typical Uses:
Clarifying organic chemicals and resins.
Filtering fine particles from catalysts.
Recovering valuable solids during reaction processes.
| Product Type | Goal | Material Choice |
|---|---|---|
| Dyes & Pigments | Remove fine solids | Polypropylene plates |
| Petrochemicals | Catalyst recovery | Stainless steel plates |
| Acids & Alkalis | Neutralization sludge | Corrosion-resistant steel |
Precision matters in the pharmaceutical world. The plate and frame filter press ensures ultra-clean liquids for drug production and laboratory testing. It’s used in decolorization, decarbonization, and sterile filtration processes. Some systems even integrate microporous membranes for ultra-fine filtration of sensitive biological materials.
Applications Include:
Removing activated carbon after drug purification.
Filtering fermentation broths or antibiotic cultures.
Clarifying herbal extracts in traditional medicine.
Clean, clear liquids are vital in food processing. This equipment filters out fine solids from liquids like syrups, edible oils, juices, and beer. Because it can be built from food-grade stainless steel, it prevents contamination while maintaining flavor integrity.
Common Operations:
Clarifying fruit juices for visual quality.
Filtering vegetable oils to remove waxes or gums.
Treating sweeteners and flavor concentrates for purity.
| Product | Filtration Target | Result |
|---|---|---|
| Juices | Fruit pulp, pectin | Clear, stable liquid |
| Oils | Waxes, fine sediment | Bright, refined oil |
| Wine / Beer | Yeast residue | Smooth, clear beverage |
In mining, slurry is everywhere. The plate and frame filter press dewaters metallic concentrates and tailings, reducing storage and transport costs. It produces a compact, dry filter cake that’s easier to handle and environmentally safer to dispose of.
Used For:
Concentrating metal ores like copper, zinc, or lead.
Recovering fine particles from process water.
Dewatering mine tailings for sustainable waste management.
It’s especially effective where space is limited or moisture reduction directly impacts profitability.
This is where the press shines in sustainability. It captures suspended solids and sludge from municipal or industrial wastewater before disposal. Because it reduces cake moisture, it cuts transport costs and landfill volume. Many systems now operate in zero-liquid discharge (ZLD) setups to recycle process water.
Environmental Benefits:
Removes organic and inorganic impurities from effluent.
Produces reusable filtrate water.
Supports compliance with EPA and ISO discharge regulations.
The result is cleaner operations, reduced environmental footprint, and efficient waste reuse across industries.
A: It separates solids from liquids in slurry mixtures using pressure filtration. Solids form a filter cake inside each frame, while the clear liquid (filtrate) passes through the cloth for collection or reuse.
A: The plate and frame design uses alternating plates and frames, allowing higher filtration precision but smaller capacity. Chamber presses have recessed plates, offering faster dewatering and less maintenance for larger volumes.
A: Typically every 2–4 weeks, depending on slurry type, cycle frequency, and cleaning practices. Damaged or clogged cloths should be replaced immediately to prevent leakage and reduced filtration quality.
A: Yes. By using stainless steel or polypropylene plates and chemical-resistant filter cloths, it can safely filter acids, solvents, or hot fluids in chemical and petrochemical industries.
A: Regularly inspect plates, seals, and feed ports for wear. Clean filter cloths after each cycle, monitor hydraulic pressure, and lubricate moving parts to ensure consistent performance and longer service life.
A plate and frame filter press offers precise, reliable solid-liquid separation across industries. It provides clean filtrate, flexible operation, and efficient performance. Though slower and more labor-intensive than modern systems, it remains essential for specialty and fine filtration. Choosing the right design, materials, and maintenance plan ensures long-lasting, consistent results in any industrial process.
