In industries ranging from wastewater treatment to pharmaceuticals, the process of separating solids from liquids is one of the most essential steps for ensuring efficiency, quality, and sustainability. Among the many technologies available, the Plate and Frame Filter Press and the Membrane Filter Press stand out as two of the most widely used solutions.
Both devices aim to achieve the same goal—effective solid-liquid separation—but they approach the task in different ways. For engineers, plant operators, or even procurement teams, the choice between these two filtration systems can influence not only the efficiency of daily operations but also long-term costs, environmental compliance, and overall product quality.
This article will explore how these two filtration methods work, what makes them different, and how you can decide which one best fits your needs. We will also highlight some of the latest industry trends and innovations that are shaping the future of filter press technology.
The Plate and Frame Filter Press is one of the oldest and most traditional methods of solid-liquid separation. Its design is simple yet effective, consisting of alternating solid plates and hollow frames stacked together. Filter cloths are placed over the plates, and slurry is pumped into the chambers formed by the frames.
As the slurry flows in, liquid passes through the cloth and exits as filtrate, while solid particles remain behind, gradually building up into a filter cake. Once the chambers are filled, the filter press is opened, and the cake is removed.
Simplicity of design: Easy to understand, operate, and maintain.
Flexibility: Can use either filter cloth or paper, making it adaptable for fine filtration tasks.
Cost-effectiveness: Lower initial investment compared to newer technologies.
Cake thickness control: By using frames of different thicknesses, operators can adjust the cake volume to meet specific needs.
The Plate and Frame Filter Press is often used in industries where precision and clarity are more important than speed. Examples include:
Food and beverage production, where clarity of liquids is critical.
Pharmaceuticals, for ensuring purity of active ingredients.
Laboratories and small-scale operations that require flexibility.
However, this type of press does have limitations. It generally requires more manual intervention, the filtration cycles can be longer, and the resulting cake tends to have higher moisture content compared to other systems.

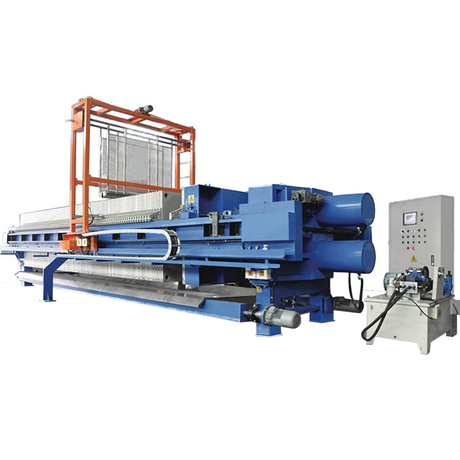

The Membrane Filter Press represents a more advanced stage in filtration technology. It looks similar to a chamber filter press at first glance, but the key difference lies in its specialized plates. Each plate contains a flexible membrane, which can be inflated using air or water once the initial filtration stage is complete.
When the membrane inflates, it compresses the filter cake, squeezing out additional liquid and producing a much drier final cake. This simple yet powerful innovation allows the Membrane Filter Press to achieve significantly higher efficiency compared to the traditional plate and frame model.
Higher cake dryness: Moisture levels can be reduced by 10–15% compared to traditional systems.
Faster cycle times: Automation and the squeezing effect reduce the overall filtration cycle.
Better throughput: More batches can be processed in less time.
Consistent results: The squeezing effect ensures uniform cake thickness and dryness.
The Membrane Filter Press is widely used in industries where efficiency and cake dryness are critical:
Municipal and industrial sludge dewatering.
Mining operations requiring dry tailings for safer disposal.
Chemical and petrochemical industries where consistent dryness improves downstream processes.
High-volume production plants needing automation and reduced labor.
While the Membrane Filter Press offers many advantages, it does come at a higher cost. The specialized plates and membranes increase the investment, and maintenance can be more demanding. However, the gains in efficiency, energy savings, and reduced disposal costs often outweigh the initial expense.
To help visualize the contrast between these two filtration methods, here is a simplified comparison:
| Feature | Plate and Frame Filter Press | Membrane Filter Press |
|---|---|---|
| Design | Alternating plates and frames | Recessed chamber plates with inflatable membranes |
| Operation | Relies on pressure and filter cloth | Adds a membrane squeezing step for extra dewatering |
| Cake Dryness | Moderate, higher moisture | Very dry, lower moisture |
| Cycle Time | Longer, often requires manual operation | Shorter, high level of automation |
| Cost | Lower initial investment | Higher initial investment |
| Flexibility | Adjustable cake thickness using frames | Fixed chamber depth |
| Best For | Small to medium-scale, flexible needs | High-volume, efficiency-focused operations |
The decision between a Plate and Frame Filter Press and a Membrane Filter Press depends on your priorities.
If budget is limited and the process requires flexibility or fine polishing, the plate and frame model is often the better choice.
If efficiency, cycle time, and cake dryness are critical to your operations, the membrane system is worth the investment.
For industries handling large volumes of sludge, chemicals, or mining tailings, the Membrane Filter Press can significantly reduce operational costs in the long run.
For smaller operations, laboratories, or cases where filter cake disposal is not a major concern, the Plate and Frame Filter Press remains highly practical.
The filtration industry is constantly evolving, and recent years have seen several exciting trends:
Automation: More systems now include fully automated cloth washing, plate shifting, and cake discharge, reducing manual labor.
Sustainability: Modern Membrane Filter Press systems help reduce water usage and minimize sludge disposal volumes.
Material Innovation: Advanced polymers and corrosion-resistant metals are extending equipment life.
Smart Monitoring: Digital sensors and IoT technology are making real-time monitoring of pressure, flow, and cake dryness possible.
These trends show that while the Plate and Frame Filter Press continues to have its niche, the Membrane Filter Press is becoming increasingly important in industries looking for speed, efficiency, and environmental responsibility.
In China, companies like Zhejiang Fujie Environmental Protection Equipment Co., Ltd. have been driving innovation in filtration technology. Founded in 2016 and located in Deqing County, Huzhou City, Fujie is a national high-tech enterprise specializing in solid-liquid separation equipment.
With advanced facilities that include ultra-large hydraulic presses, five-axis machining centers, and digitalized production systems, Fujie develops both Plate and Frame Filter Press and Membrane Filter Press solutions tailored to industrial needs. Their equipment is widely used in environmental protection, sewage treatment, and sludge dewatering projects, helping customers achieve higher efficiency and reliability.
By combining strong R&D, ISO-certified quality management, and patented technologies, Fujie demonstrates how manufacturers are meeting the growing demand for advanced filtration systems worldwide.
Both the Plate and Frame Filter Press and the Membrane Filter Press play vital roles in modern industry. The plate and frame model is a classic, reliable solution, ideal for situations that require flexibility and precision. The membrane press, on the other hand, represents innovation and efficiency, producing drier cakes, reducing cycle times, and supporting automation.
Ultimately, the choice comes down to balancing cost, efficiency, and application needs. Companies like Zhejiang Fujie Environmental Protection Equipment Co., Ltd. provide both options, ensuring that businesses can find the solution that fits their unique requirements.
As industries continue to move toward smarter, greener, and more efficient operations, the Membrane Filter Press is likely to dominate future installations. Yet, the Plate and Frame Filter Press will remain relevant, especially in applications where versatility and cost-effectiveness are paramount.
By understanding the differences, businesses can make informed decisions and achieve the best outcomes in their solid-liquid separation processes.
