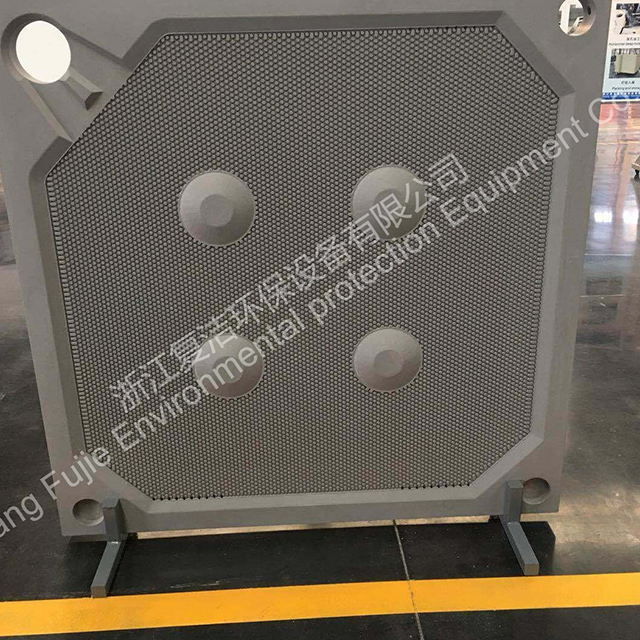

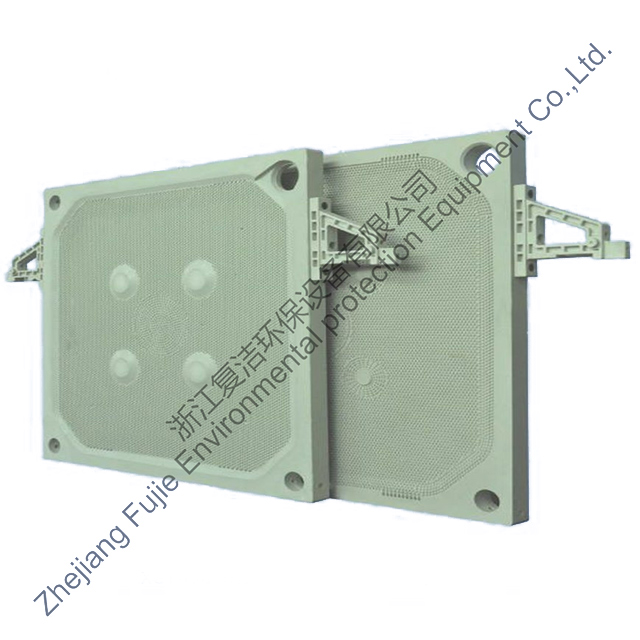

800-2000 High Pressure PP Membrane Plate

The product description

Product Features

1. High-efficiency separation: The unique structural design allows external media (such as water or compressed air) to be introduced between the core plate and the membrane, causing the membrane to bulge and compress the filtration chamber consisting of the membrane plate and the box filter plate, resulting in better solid-liquid separation and a significant increase in solid content.




2. Strong durability: The rubber diaphragm plate is made of highly elastic rubber material, embedded in the groove of the core plate, which is not only easy to disassemble and replace, but also effective in resisting deformation and damage, prolonging the service life of the product.




3. Enhanced production efficiency: Optimized sealing performance ensures shorter filtration time, which significantly improves overall production efficiency and reduces operating costs.




4. Wide applicability: The product series covers from 800mmX800mm to 2000mmX2000mm, meeting the filtration needs of different industrial scenarios, and is widely used in many fields such as chemical industry, pharmaceutical industry, food industry, and water treatment industry.

Technical details

• Material: The core plate and membrane are made of high-quality PP (polypropylene), which is highly corrosion-resistant and suitable for a variety of chemical environments.

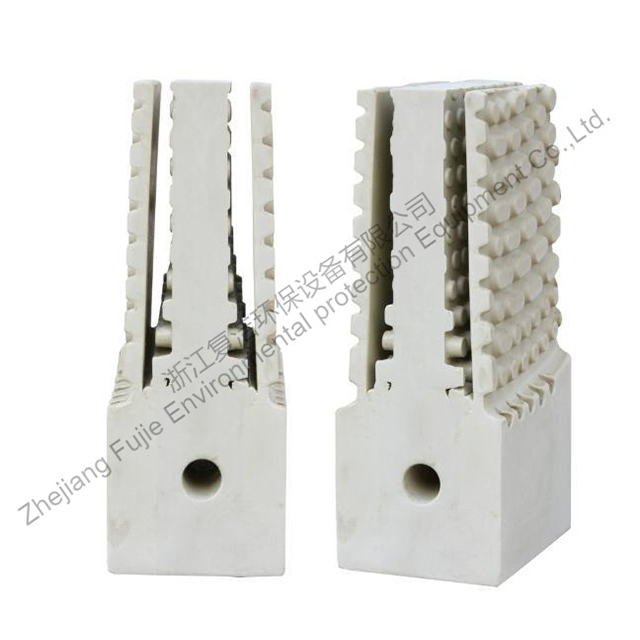

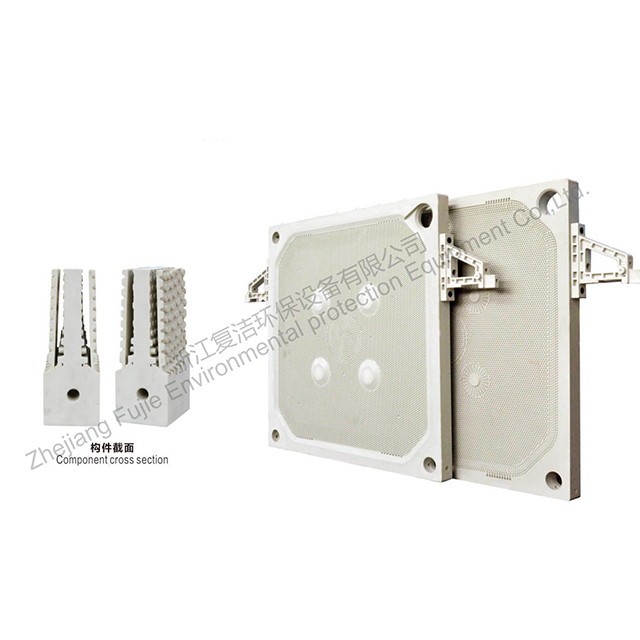

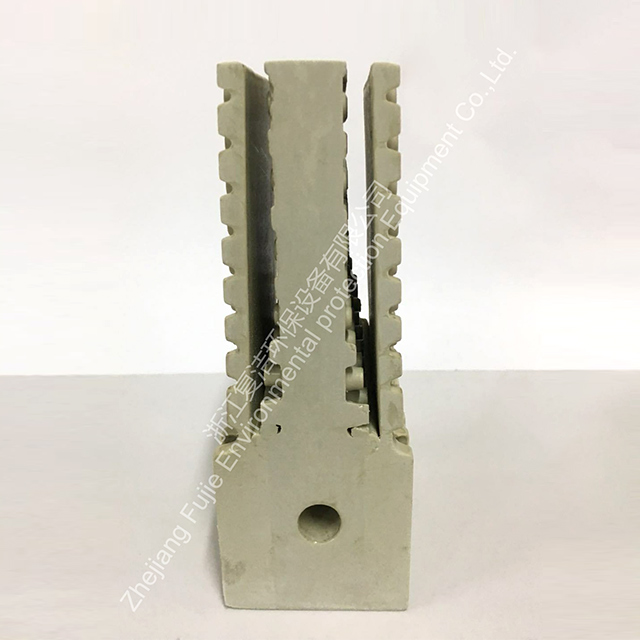

• Structure: composed of two rubber diaphragms and a core plate, compact structure, stable performance.

• Operation Principle: Pressure is generated by the introduction of external media, which causes the membrane plate to expand and compress the filter chamber, realizing high-efficiency filtration.

Product display Specifications
