In industrial batch solid-liquid separation, a filter press is fundamentally constrained by its plate technology. Selecting the wrong plate type leads to excessive cycle times, high moisture content in the filter cake, and inflated disposal costs. Plant engineers and procurement teams must balance initial Capital Expenditure (CapEx) against long-term Operating Expenses (OpEx). The decision often hinges on whether standard pressure from a feed pump is sufficient, or if secondary mechanical compression is required to achieve target cake dryness. This evaluation breaks down the mechanical realities, performance trade-offs, and lifecycle costs of using a standard recessed PP filter plate versus a membrane alternative. We provide a framework to specify the correct filter press parts for your specific slurry characteristics.

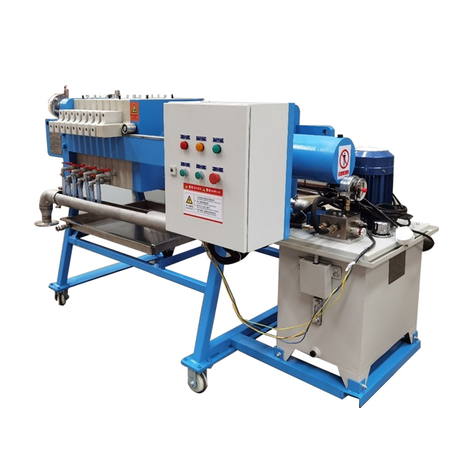

Modern filtration has largely moved away from older plate and frame systems. Legacy setups utilize flush plates separated by hollow frames. They allow operators to use a wider range of specialized filter media, including paper. However, these older designs struggle under high pressure. They possess numerous sealing surfaces prone to leakage and require intense manual labor to clean. Today, the recessed polypropylene plate serves as the modern standard. It handles high-pressure, general industrial dewatering with exceptional reliability. By combining the plate and the frame into a single recessed unit, engineers eliminated half the sealing surfaces. This design shift dramatically reduced blowout risks and improved overall safety on the plant floor.
Standard recessed plates consist of a solid, monolithic block of polypropylene. Manufacturers CNC machine or injection mold these blocks to exact tolerances. Each plate features a recessed center on both sides. When you clamp two mating plates together in the press frame using hydraulic force, they form a hollow, sealed chamber. This chamber is where the filter cake builds up during the filtration cycle. The plates feature raised pips, cylinders, or drainage grooves on the recessed surface. These raised structures support the filter cloth under extreme pressure while providing a clear, unobstructed path for the filtrate to exit the press through the corner discharge ports.
Dewatering in a standard recessed plate relies entirely on fluid dynamics and pump mechanics. The pressure generated by the slurry feed pump drives the entire process. Operators typically run these pumps—often air-operated double-diaphragm (AODD) or centrifugal pumps—between 100 and 225 psi. As the pump forces slurry into the chamber, solids build up on the filter cloth. The liquid passes through the cloth and exits via the drainage ports. The pump must work harder as the chamber fills and the cake thickens. Eventually, the pump reaches its maximum pressure limit and stalls out against the hydraulic resistance. At this point, the chamber is packed with solid cake, and filtration stops.
Standard recessed plates offer several distinct operational benefits for plant operators looking for rugged reliability.
You should deploy standard recessed plates for applications involving high-density, easily dewatered solids. These materials do not compress under pressure. The feed pump alone provides enough force to expel the interstitial liquid from the solid particles. Common applications include aggregate wash water processing in quarries. Mining operations use them heavily for basic tailings dewatering. Facilities handling heavy metal precipitation also rely on standard plates. In these scenarios, the solids form a rigid, porous cake naturally. Adding secondary mechanical compression offers zero additional benefit and only complicates the process.

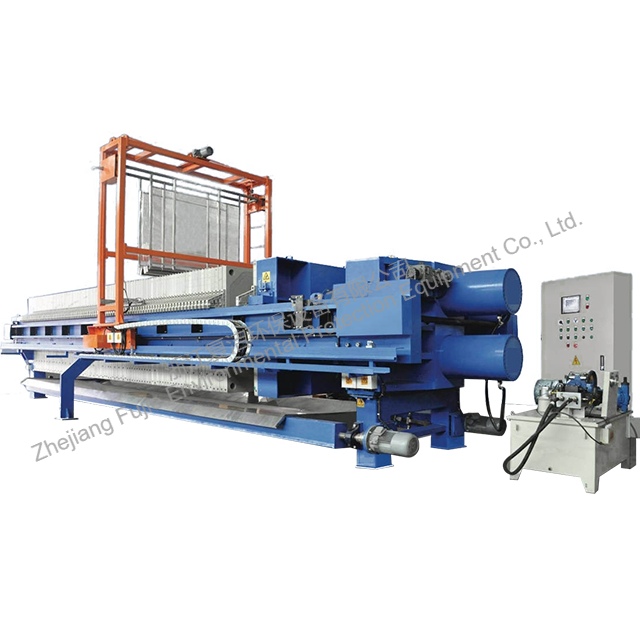

A membrane filter plate fundamentally alters the dewatering sequence. It starts with a core plate similar to a standard recessed design. However, manufacturers attach a flexible membrane to the core filtration surface. This membrane is typically made of polypropylene, thermoplastic elastomer (TPE), or synthetic rubber like EPDM. The membrane sits behind the filter cloth. During the initial feed cycle, the membrane remains flat against the core plate. It acts just like a standard recessed plate while the chamber fills with slurry. The feed pump does the initial heavy lifting to build the cake.

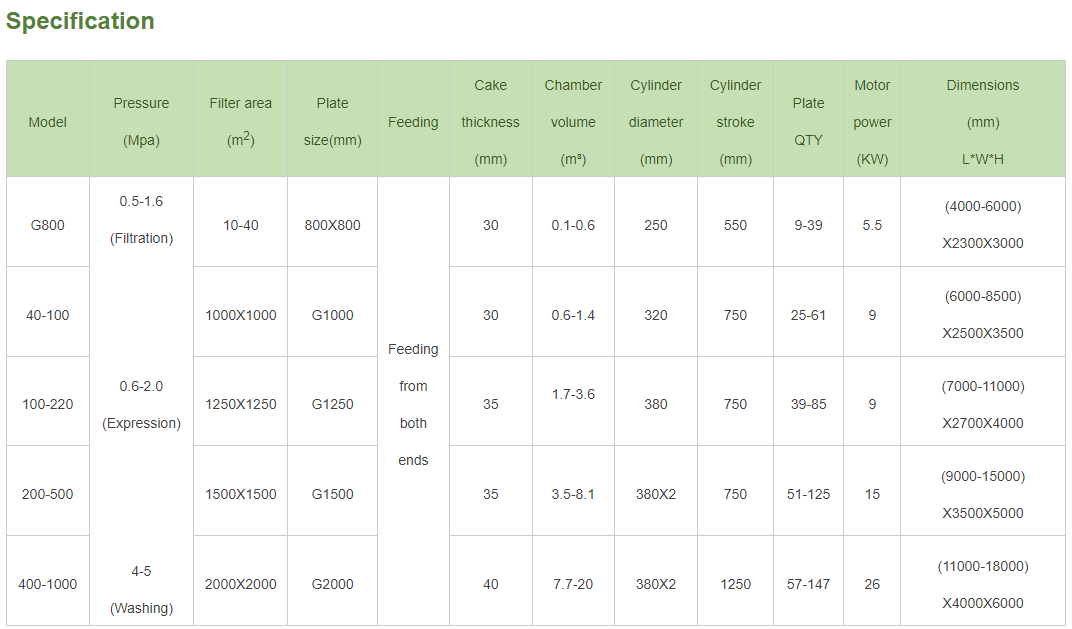

The true advantage emerges after the feed pump turns off. The chamber is full of wet, spongy cake. The control system initiates the secondary dewatering process. High-pressure water or compressed air enters a cavity behind the flexible membrane through a dedicated manifold system. This fluid inflates the membrane outward into the filter chamber. The inflated membrane physically compresses the formed filter cake. This mechanical squeeze forces out remaining interstitial moisture that the feed pump could not overcome. The squeeze pressure typically ranges from 100 to 225 psi, though specialized high-pressure units can push beyond 300 psi for extremely difficult materials.
When selecting membrane plates, engineers must choose between two primary manufacturing methods. Each carries distinct operational and maintenance implications.
| Design Type | Initial CapEx | Leakage Risk | Maintenance Action on Failure | Long-Term OpEx |
|---|---|---|---|---|
| Welded Membrane | Lower | Zero (fully sealed) | Replace entire plate assembly | Higher (frequent full replacements) |
| Replaceable Membrane | Higher | Low (relies on seals/clamps) | Replace only the flexible membrane | Lower (core plate remains in service) |
Standard PP plates face a point of diminishing returns. As the cake builds, hydraulic resistance increases exponentially. Eventually, the feed pump pressure can no longer expel interstitial moisture from the center of the cake. The pump simply stalls against the resistance. Membrane plates bypass this limitation entirely. The mechanical squeeze applies uniform physical pressure across the entire cake surface. This action routinely yields final cake moisture levels 10 to 25% drier than standard plates. Drier cakes directly reduce disposal weight, cutting hauling fees drastically. They also slash downstream thermal drying energy requirements, saving massive amounts of natural gas or electricity.
Filtration curves dictate cycle times. With standard plates, the initial fill is rapid. However, the terminal feed cycle drags on. The pump pushes small amounts of slurry into the press for hours to pack the chamber tightly. Membrane plates allow operators to halt the feed pump much earlier in the cycle. Once the chamber is reasonably full, the pump stops. The rapid mechanical squeeze takes over to finish dewatering. This shift often reduces total cycle time by up to 50%. Faster cycles mean more batches per shift and higher overall plant throughput without buying a larger press.
Sticky or highly compressible cakes create massive headaches for operators using standard plates. The wet cake clings stubbornly to the filter cloth. Operators must manually scrape each chamber clean with spatulas. This manual labor increases downtime between batches and poses safety risks. Membrane plates solve this through physics. At the end of the cycle, the system vents the squeeze fluid. The membrane deflates and pulls away from the cake. This action breaks the surface tension between the filter cloth and the solid cake. The cake simply falls away into the hopper below, enabling rapid, automated discharge.
Many chemical and pharmaceutical processes require cake washing to remove impurities or recover valuable filtrate. Standard plates struggle here. The cake thickness is often uneven. Wash water takes the path of least resistance, causing channeling. This leaves large sections of the cake unwashed and contaminated. Membrane plates excel at washing. Operators apply a brief pre-squeeze before introducing wash water. This creates a uniform, consolidated cake with consistent porosity. Wash water flows evenly through the entire cake mass. This significantly reduces wash water consumption and improves the purity of the final solid.
Your slurry dictates your plate selection. You must perform a rigorous particle analysis. If your material is highly compressible, membrane plates yield a massive return on investment. Compressible materials include biological sludge from wastewater treatment plants. Chemical precipitates, alum sludge, and pharmaceutical waste also fall into this category. These materials shrink under pressure. Conversely, if your slurry contains highly abrasive particles, you must be careful. Abrasive grit will wear out flexible membranes quickly. You must select heavy-duty synthetic rubber membranes or stick to standard rigid plates to maximize the lifespan of the filter press plate.
The initial cost delta is significant. Membrane plates cost more per unit to manufacture. Furthermore, they require auxiliary equipment. You must install squeeze water skids or high-capacity air compressors. You need specialized manifold piping, automated valves, and pressure sensors. However, you must calculate the daily operational savings. Calculate the exact savings from reduced hauling and disposal fees due to lighter, drier cakes. Factor in the lower thermal drying energy required. Add the revenue from increased daily throughput. In highly compressible applications, the operational savings pay for the higher initial CapEx within months.
You must address the reality of mechanical fatigue. Standard PP plates have a near-infinite lifespan if maintained properly. They do not flex or stretch. Membranes, however, have a finite lifespan measured in cycles. Every inflation and deflation stresses the material. You will eventually have to replace them. Furthermore, membrane systems introduce operational complexity. Maintenance teams must service squeeze manifolds, check valves, and monitor pressure sensors. You need precise control systems. If a membrane inflates before the chamber is full of slurry, the uneven pressure will blow out the plate entirely, causing a catastrophic failure.
Do not assume your standard press can simply accept membrane plates. This is a dangerous misconception. The mechanical squeeze exerts tremendous internal force across the entire plate stack. The steel frame, hydraulic ram, and tie-bars must be rated for this additional pressure. If you install membrane plates in an underrated frame, the tie-bars will stretch or snap under the load. The hydraulic ram may fail catastrophically, spraying hydraulic fluid across the plant. You must have a structural engineer evaluate your existing equipment before attempting a retrofit.
Membrane plates require strict operational sequencing. You cannot rely on manual ball valves and operator memory. If an operator applies the squeeze pressure to a partially empty chamber, the membrane will stretch beyond its elastic limit and rupture. It can also crack the adjacent core plate. You must mitigate this risk with automated PLC controls. The system needs pressure feedback loops. It must verify that the feed pump has packed the chamber sufficiently before allowing the squeeze valves to open. Interlocks must prevent the press from opening while the membranes are still inflated.
Theoretical sizing charts are useless for complex slurries. You must partner with a reputable filter press manufacturer that provides empirical pilot testing. Send them a sample of your slurry. They will run it through a pilot-scale press using both standard and membrane plates. This empirical data reveals exactly how your specific material reacts to mechanical compression. It provides the hard data needed to justify the capital expenditure to your management team. Never buy membrane plates based on guesswork or generic industry averages.
A: Yes, this is called a "mixed pack." It alternates one membrane plate with one standard recessed plate. This configuration reduces CapEx while still providing a mechanical squeeze to every chamber. You must ensure the standard plates are structurally compatible with the adjacent membrane expansion.
A: Squeeze pressure typically ranges from 7 bar (100 psi) to 16 bar (225 psi). High-pressure specialized plates can exceed 30 bar. The maximum limit depends entirely on the specific membrane material and the structural rating of the filter press steel frame.
A: Lifespan is dictated by cycle count, chemical exposure, and operating temperature rather than the attachment method. Both designs typically last between 3,000 and 10,000 cycles. Replaceable designs simply lower the maintenance cost of the inevitable replacement.
A: Plate and frame presses utilize flush plates with separate hollow frames. Their primary advantage today is the ability to quickly change filter cloths and use specialized filter media, like paper, for fine filtration. However, recessed PP plates are the modern standard for heavy-duty industrial dewatering due to higher pressure tolerances.
A: You will need a squeeze fluid medium, which requires an air compressor or a high-pressure water pump skid. You also need specialized manifold piping, safety pressure relief valves, and an upgraded PLC system to sequence the squeeze phase safely.
