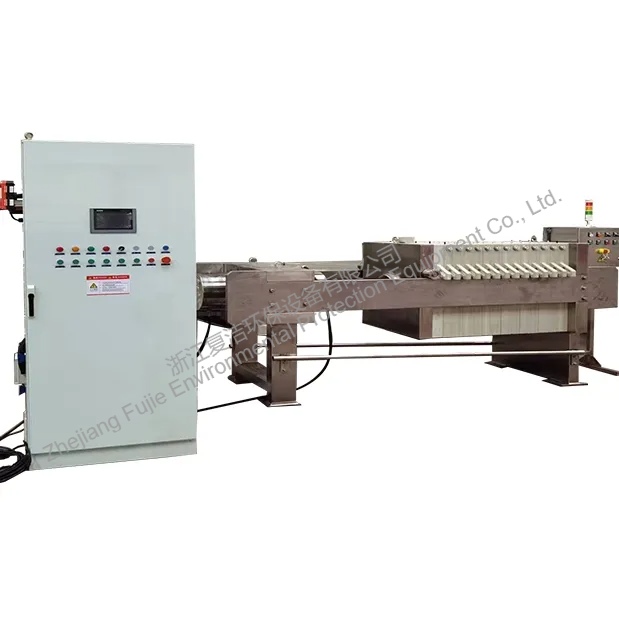

Chamber Plate Filter Press

Reduce material moisture content, solid-liquid separation, compression materials, cleaning liquid
Availability:
Quantity:
Inquire Add to Basket

Description
The filter plate of a box type filter press can be understood as a combination of a plate and a frame. Both sides of each box type plate have recesses. There is a large feeding hole in the middle of the plate, which allows  faster  more uniform feeding with less clogging. It can also reach higher feed pressure. This is suitable for applications with high feed volume or pressure.
Now,chamber plate filter press is gradually becoming the mainstream type.

Product details

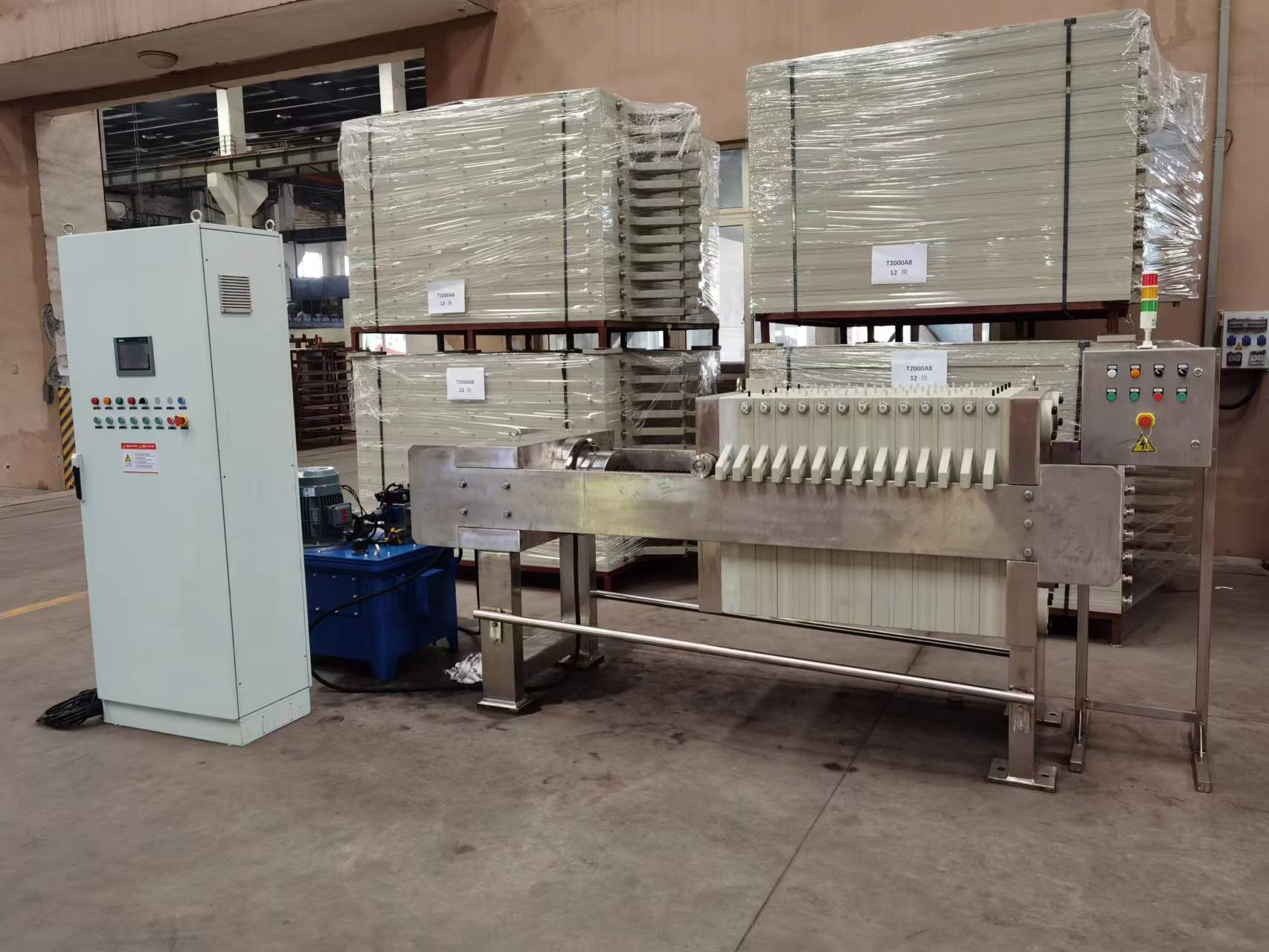

微信图片_20230814143853


Features

1.304 stainless steel, high-quality reinforced PP...etc. Various materials are available for the filter plate, with a variety of filter cake thicknesses and filter areas to meet the various needs of different industries.

2.There are multiple options for processing capacity and pressure, and the automatic hydraulic system adopts high-quality motors, which have excellent performance and long service life.

3.Plenty of automation configuration optional for you.

4.Automatic cloth washing, plate-pulling,reverse turning plate,one-pull-many etc. Full automation, refined design, years of validation from market.
Stable performance and safety.

5.Non-standard customization available.

6.We offer customized solutions and integrated production to meet the requirement for you.


Specification

Model Filtration pressure
(Mpa)		 Filter area
(m2)		 Feeding

 Plate
Thickness
(mm)		 Frame
thickness(mm)		 Cake thickness(mm) Chamber
volume
(m³)		 Plate QTY Pressure Cylinder diameter
(mm)		 Cylinder
stroke
(mm)
B/610-UB 1.6 6-15 External corner feeding

6 0.043-0.24
Manual
hydraulic		 200 480
B/800-UB 2.0 10-60 External corner feeding 35

 30

 9-55
/
10-56		 Auto
hydraulic		 250 450
B/650-U 0.5 10-20 Corner feed 30 30 30

Electro
hydraulic		 160 400
B/650-U 10-20

Manual
hydraulic		 160 400
B/870-U 10-80 0.13-1.03 7-63
/8-64		 Auto
hydraulic		 200 450
B/1000-U 10-80

60~120

Auto
hydraulic		 250 550

1.Parameter differs in each model because of various requirements (high temperature ,chemical resistance)
2.Customization available.
3.Please contact us for any further information
