In high-volume liquid-solid separation, the structural frame of the filtration equipment dictates long-term reliability, maintenance frequency, and operator safety. Selecting the wrong frame architecture for specific slurry characteristics—particularly highly corrosive, toxic, or exceptionally heavy materials—results in premature rail wear, frequent plate misalignment, and increased operational downtime. Regardless of frame type, industrial facilities rely on pressure filtration to remove impurities, extract clear filtrate, and produce a highly dry filter cake. This process often achieves significantly higher solids content than alternative dewatering methods like belt presses. Evaluating the mechanical realities of standard sidebar designs against the suspended architecture of an overhead filter press is a major decision-stage requirement. This guide breaks down the structural differences, operational trade-offs, and application-specific success criteria to inform capital equipment procurement.
Pressure filtration operates on a straightforward mechanical principle: utilizing hydraulic pressure to force slurry through filter cloths, separating clear liquids from solid impurities. Slurry is pumped into closed chambers formed by recessed plates. As the feed pump continues to push material into the chambers, solids build up on the filter cloth while the liquid passes through the weave and exits via drainage ports. Plant operators rely on a specific sequence of events to achieve optimal cake dryness.
The closing system interacts directly with the structural frame to maintain system integrity. The steel skeleton of the machine consists of a stationary head, a hydraulic cylinder support, and tension members connecting them. The design of these tension members creates the fundamental difference among various filter press types available on the market today. The frame must absorb massive opposing forces without deflecting. If the frame bends under load, the plates separate, causing high-pressure slurry to spray out of the sides.
The traditional sidebar architecture is the most common configuration found in industrial dewatering. In this design, the filter plates rest directly on two parallel side beams that connect the stationary head to the hydraulic tail end. Each plate features protruding handles on its sides, which sit on top of wear strips mounted to the side rails. These wear strips are typically manufactured from UHMW polyethylene or stainless steel to reduce friction.
The load path in a sidebar configuration is direct and lateral. The entire weight of the plates, the accumulated wet filter cake, and the internal slurry volume transfers straight down into the side rails. As the press opens and closes, the shifting mechanism drags the heavy plates along these rails. This constant sliding generates significant friction, requiring regular lubrication and periodic replacement of the wear strips to prevent the plates from binding or jumping off the track.
Sidebar designs dominate standard use cases where cake weights remain moderate. Municipal wastewater treatment plants rely heavily on sidebar presses for processing biological sludge, which typically has a specific gravity close to 1.0. Standard mining operations processing lighter tailings, as well as non-corrosive industrial sludge applications, benefit from the simplicity of this design. Because the side rails double as the tension members holding the press closed, the engineering is straightforward and highly effective for standard materials.

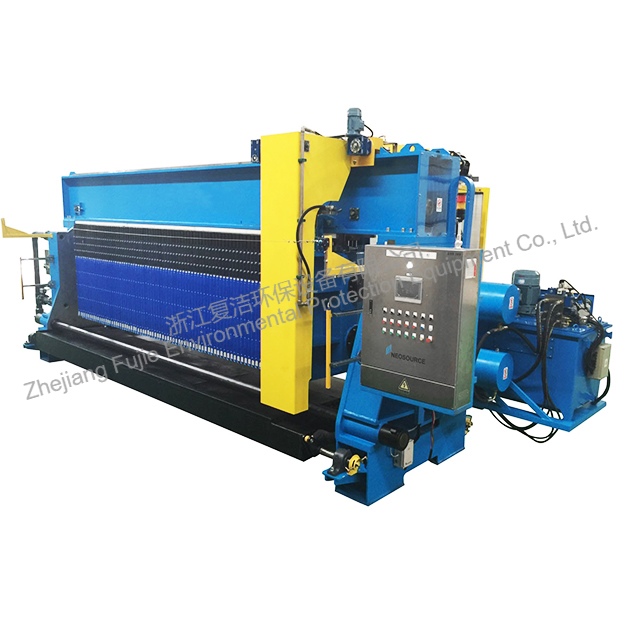

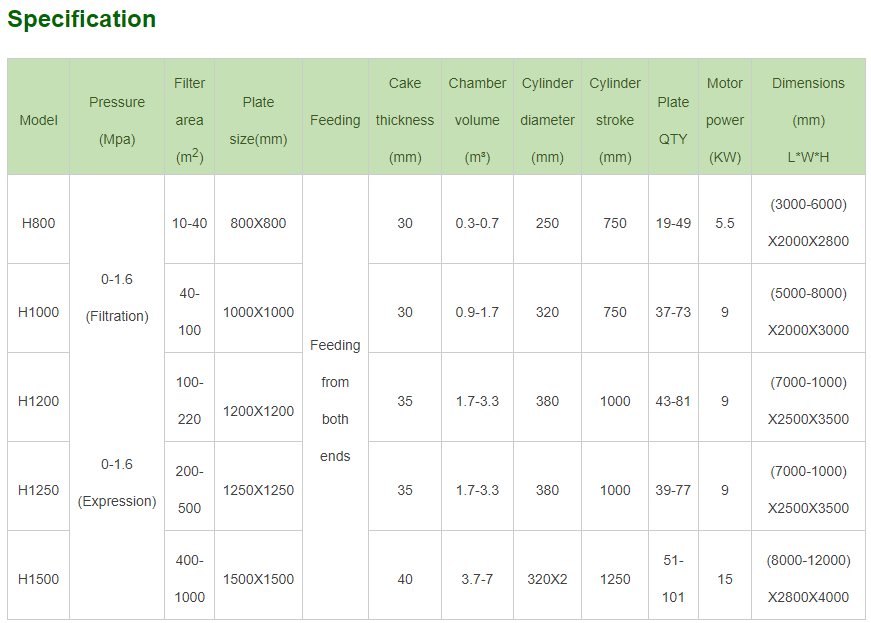

An overhead suspension filter press fundamentally alters the structural load path. Instead of resting on side rails, the filter plates hang from a robust twin-beam or single I-beam structure located entirely above the filter pack. The tension members that hold the press closed during hydraulic clamping are completely separate from the plate support mechanism, often taking the form of heavy-duty tie rods positioned outside the splash zone.
This suspended architecture utilizes a dual-point hanger system attached to the top of each plate. The weight of the plates and the heavy filter cake is suspended from the upper beam. Because the plates hang freely, gravity pulls them into a perfectly plumb position. When the shifting carriage moves the plates, they roll along the upper beam track on high-load bearings rather than sliding across a friction-heavy side rail. This rolling action requires significantly less force and eliminates the metal-on-metal scraping inherent in sidebar designs.
Primary use cases for overhead designs involve extreme operational environments. Highly corrosive chemical processing plants use them because aggressive filtrates cannot drip onto the load-bearing beams. Heavy metallurgical processing requires overhead frames because the sheer weight of the high-density filter cake would cause standard side rails to bow or fail. Food-grade applications and pharmaceutical plants prefer overhead designs because the absence of side rails allows for unobstructed cleaning and prevents bacterial buildup in hidden crevices.
Heavy filter cakes cause severe friction and wear on sidebar rails. When processing mineral concentrates or high-density industrial sludges, the combined weight of the plates and the retained solids puts immense downward pressure on the side beams. Over time, this weight causes the wear strips to degrade unevenly. As the wear strips fail, the plates begin to drag, leading to plate skewing during the opening and closing cycles. A skewed plate prevents the hydraulic system from achieving a proper seal, resulting in leaks, damaged filter cloths, and cracked plates.
Gravity provides a distinct alignment advantage in suspended architectures. Because the plates hang from the upper beam, they naturally self-align vertically. The overhead beam absorbs the massive static weight of the slurry without subjecting the shifting mechanism to lateral friction. The rolling bearings on the hanger brackets allow even the heaviest plates to move smoothly along the track. This elimination of sliding friction drastically reduces wear on the plate handles and ensures that the plate pack remains perfectly parallel during the high-pressure clamping phase.
| Technical Parameter | Sidebar Filter Press | Overhead Filter Press |
|---|---|---|
| Load Path | Weight rests directly on lateral side rails. | Weight is suspended from upper support beams. |
| Plate Movement | Sliding friction along wear strips. | Rolling friction via bearings on an upper track. |
| Alignment Mechanism | Relies on rail integrity and manual adjustment. | Gravity-assisted self-alignment (plumb hanging). |
| Ideal Slurry Weight | Light to moderate specific gravity (SG < 1.5). | High specific gravity (SG > 1.5) and dense cakes. |
Filter press operations range from completely manual to fully automated systems. Manual shifting requires operators to physically pull each plate apart after a filtration cycle to release the cake. Semi-auto systems use a basic mechanical chain drive to pull plates one by one. While sidebar presses can accommodate automatic shifters, the shifting carriage must travel along the same side rails that are exposed to slurry, dirt, and corrosive liquids. Debris buildup on these rails frequently jams the shifting sprockets, causing cycle delays and requiring constant operator intervention to clear the tracks.
Overhead designs excel in automation because the shifting carriage rides on the clean upper beam. An automatic filter press configured with an overhead frame keeps all drive motors, chains, and proximity sensors safely above the wet zone. This clean operating environment allows for high-speed, multi-plate opening systems. Advanced overhead presses utilize Variable Frequency Drive (VFD) motors to pull three, five, or even all plates simultaneously without jamming. By discharging the entire filter cake in a fraction of the time it takes a standard sidebar press, facilities can significantly increase their daily throughput.
Analyzing the drop zone reveals a major vulnerability in traditional frame designs. In a sidebar press, the side rails are positioned directly beneath the edges of the filter plates. When the press opens, falling cake, residual slurry, and acidic or caustic filtrate drop straight down. Much of this material lands directly on the side rails, wear strips, and shifting chains. In mining or chemical applications, this constant exposure to abrasive and corrosive materials rapidly degrades the carbon steel frame. Even high-grade epoxy coatings eventually fail under the mechanical scraping of the shifting plates, exposing the raw steel to rapid oxidation.
The isolation benefit of the overhead configuration solves this problem structurally. All critical moving parts, electronic sensors, and structural supports are located above the discharge zone. When the plates separate, the filter cake falls freely into the disposal chute or conveyor below without hitting any part of the machine's framework. This physical separation eliminates chemical degradation of the drive systems and protects the structural integrity of the press. For processes involving sulfuric acid, caustic soda, or highly abrasive silica, removing the load-bearing frame from the splash zone is the only reliable way to ensure long-term equipment survival.
Matching slurry density to frame type dictates the mechanical success of the installation. Plant engineers must evaluate the specific gravity of their feed material before selecting a frame. Sidebar presses perform exceptionally well for lighter, organic sludges found in municipal wastewater or food processing. These materials produce a relatively light filter cake that does not overstress the lateral rails. Using a sidebar press for these applications keeps capital costs low while meeting all structural requirements.
Heavy industrial applications mandate overhead designs. High-specific-gravity slurries, such as those found in zinc, lead, copper, and gold processing, produce incredibly dense filter cakes. A single large-format filter plate filled with metallurgical concentrate can weigh hundreds of kilograms. When multiplied across a 150-plate press, the total static load easily causes standard side rails to bow outward. This bowing compromises the hydraulic seal and leads to catastrophic blowouts. The heavy-duty upper beams of an overhead press are engineered specifically to handle these massive vertical loads without transferring stress to the sealing mechanism.
Routine maintenance on a filter press involves washing filter cloths, replacing damaged plates, and occasionally assisting stubborn filter cakes to drop. Sidebar presses require operators to reach over the side rails to access the filter pack. This physical barrier makes it difficult to thoroughly clean the cloths and forces operators into awkward, unergonomic positions. If a heavy cake fails to drop, operators must use scrapers while leaning over the rails, increasing the risk of injury from falling debris or accidental plate movement.
Overhead designs highlight unobstructed side access as a primary safety and maintenance advantage. With the structural beams located above the plates, the sides of the filter pack are completely open. This open architecture provides several distinct operational benefits.
Facility constraints often dictate equipment selection. Sidebar presses require significantly less vertical clearance, making them suitable for facilities with low ceilings or existing multi-level platforms. Because the structural support is lateral, the overall height of the machine is kept to a minimum. This compact vertical footprint simplifies installation in older plants where modifying the roofline or raising overhead cranes is not financially viable.
Overhead presses require significant headroom. The massive upper support beams, the shifting carriage mechanism, and the structural legs necessitate a tall installation envelope. Facility planning must account for this increased height, ensuring adequate clearance for overhead cranes used during installation and maintenance. The concentrated point loads of the heavy support legs also require robust concrete foundations. Plant engineers must verify that the existing floor slab can handle the dynamic loads, often requiring rebar-reinforced concrete pads and oversized anchor bolts.
Procurement teams must acknowledge the higher initial CapEx of an overhead configuration. Manufacturing a suspended frame requires significantly heavier structural steel for the upper support beams and robust vertical columns to handle the dynamic loads. The engineering tolerances are tighter, and the shifting mechanisms utilize heavy-duty bearings and tracks rather than simple sliding chains. This increased material and manufacturing complexity translates directly to a higher purchase price compared to a standard sidebar model.
Industrial facilities must calculate the long-term operational savings over the lifespan of the equipment. In heavy-duty applications, the overhead design drastically reduces the consumption of wear parts like slide blocks, wear strips, and shifting chains. Because the shifting mechanism operates in a clean zone above the slurry, maintenance teams spend far fewer hours troubleshooting jammed carriages or replacing corroded sensors. The reliable automation reduces direct labor costs, as operators are not required to monitor every cycle. Fewer unplanned outages and consistent cycle times quickly offset the initial CapEx premium in aggressive environments.
Both frame styles accommodate various plate technologies, but the specific configuration heavily influences performance. Traditional plate and frame setups use alternating solid plates and hollow frames, which are largely obsolete in modern high-pressure applications. Today, the chamber filter press configuration is the industry standard. Chamber plates feature recessed surfaces that form the cake cavity when clamped together, allowing for higher feed pressures and better cake formation.
Integrating advanced plate technology yields massive performance upgrades. Implementing a membrane squeeze filter press system within an overhead frame allows facilities to achieve up to 20% drier cakes and 50% faster cycle times. Membrane plates feature flexible surfaces that inflate with high-pressure water or air after the initial feed cycle. This physical squeeze mechanically compresses the filter cake at pressures up to 16 bar, driving out residual moisture before the press opens. Drier cakes drastically slash thermal drying expenses and reduce hauling costs for waste disposal.
A custom filter press can be engineered in either a sidebar or overhead configuration to meet specific plant requirements. Overhead designs offer significantly more flexibility for integrating advanced peripheral features. Because the sides and bottom are unobstructed, engineers can easily add bomb-bay drip trays to catch wash water, automatic cake shakers to dislodge sticky solids, and custom discharge chutes without interfering with the structural frame.
The primary risk during the implementation of an overhead press involves structural alignment. Because the plates hang from an upper track, the entire machine must be perfectly level. If the foundation settles unevenly or the support legs are installed out of plumb, the upper beam will slope. This misalignment causes the heavy plates to drift toward the lower end, making it impossible for the shifting carriage to engage the hanger brackets properly. The carriage will bind, halting production and potentially damaging the drive motors.
To mitigate this risk, project managers must mandate strict installation protocols. Installers must follow a precise sequence to guarantee structural integrity.
Partnering with a vendor inexperienced in overhead suspension dynamics introduces severe operational risks. Overhead frames require complex engineering to manage dynamic loads during plate shifting and static loads during hydraulic clamping. An under-engineered upper beam will deflect under pressure. If the beam sags even a few millimeters in the center, the plates will not seal correctly, leading to high-pressure slurry blowouts that endanger operators and damage the filter cloths.
Mitigating this requires rigorous vendor vetting. Evaluate the filter press manufacturer based on their verified track record with heavy-duty, high-tonnage applications. Demand to see finite element analysis (FEA) data for their frame designs, proving that the upper beam will not deflect under maximum hydraulic clamping force. Assess their post-installation support capabilities, ensuring they provide on-site commissioning, operator training, and readily available spare parts for the specific shifting mechanisms used in their overhead models.
A: The primary advantage is isolating the load-bearing and shifting mechanisms from the filter cake discharge zone. This prevents corrosion, reduces wear on moving parts, and allows unobstructed side access for maintenance.
A: Yes. The term chamber refers to the style of the filter plates, while overhead refers to the structural frame. Chamber plates and membrane squeeze plates frequently integrate into overhead suspension frames to maximize solid-liquid separation.
A: While you can operate them semi-automatically, overhead designs are highly preferred for fully automatic systems. The clean upper beam allows high-speed, reliable plate shifting without interference from falling debris.
A: Sidebar presses require less structural steel and simpler engineering for the frame. This results in lower manufacturing costs and a smaller vertical footprint, reducing initial capital expenditure.
A: Look for manufacturers that provide transparent engineering data, such as FEA testing on frame deflection under hydraulic load. They should offer on-site pilot testing and have proven case studies in your specific industry.
