High disposal costs, thermal drying expenses, and regulatory compliance issues tie directly to excess liquid retained in solid waste. Traditional recessed chamber presses often reach a physical limit in mechanical dewatering. They leave trapped interstitial moisture that cannot be removed by feed pump pressure alone. Achieving the lowest possible filter cake moisture requires secondary mechanical compression.
This guide breaks down the mechanics, material trade-offs, configuration strategies, and operational factors of implementing a membrane filter press for advanced dewatering applications. You will learn how to optimize cycle times, select the right plate materials, and validate performance through rigorous testing.
Standard filtration systems face strict physical limits dictated by pump curves and fluid dynamics. As a feed pump pushes slurry into a filter press, solids accumulate on the filter cloth. This accumulation forms a permeable barrier known as the filter cake. As the cake thickens, differential pressure increases rapidly. The pump must work harder to push liquid through the growing solid mass. Eventually, the pump reaches its maximum dead-head pressure. The flow rate of clear filtrate drops to a trickle. At this exact moment, the center of the chamber still contains a wet, spongy core of unfiltered slurry. Standard presses stop here, leaving significant capillary moisture trapped inside the cake. Secondary mechanical compression solves this limitation.
The cycle begins identically to a standard recessed chamber press. The hydraulic cylinder extends, clamping the plate pack tightly together to withstand internal feed pressure. The main feed pump activates, driving slurry through the center or corner feed shoe into the empty chambers. Solids build up uniformly on the filter cloths. Filtrate passes through the woven fabric, travels down the drainage pips on the plate surface, and exits through the corner discharge ports. Operators monitor the filtrate flow rate. When the flow rate drops below a predetermined setpoint (often 1 to 2 gallons per minute, depending on press size), the initial fill phase is complete. The feed pump shuts down, and the feed isolation valves close.
Facilities recovering valuable chemicals or removing soluble impurities utilize a cake wash phase. Membrane plates excel here. Because the cake has not yet been squeezed, it maintains a uniform, porous density. Wash liquor is pumped into the press, flowing through the cake to displace the mother liquor. This is known as displacement washing. It is highly efficient and prevents channeling, a common problem in standard presses where wash fluid bypasses dense areas of the cake. Operators achieve higher purity targets using significantly less wash liquor.
This phase defines the technological advantage of the system. With the feed valves closed and the chamber isolated, a pressurized medium enters the cavity behind the flexible membrane surface. The membrane physically expands outward, pushing directly against the formed cake. This expansion reduces the internal volume of the chamber. It mechanically forces the solid particles closer together, collapsing the interstitial voids. Trapped liquid is squeezed out of the cake and exits through the standard filtrate ports.
Operators must select the appropriate fluid to inflate the membranes. This decision impacts site safety, infrastructure requirements, and maximum achievable pressure.
| Squeeze Medium | Safety Profile | Maximum Pressure | Infrastructure Required |
|---|---|---|---|
| Pressurized Water | High (Incompressible fluid; pressure drops instantly upon plate failure) | Up to 30+ bar | Water reservoir, multi-stage centrifugal pump, return manifold |
| Compressed Air | Low (Compressible gas; stores massive kinetic energy, explosion risk) | Strictly limited to < 7 bar | Standard plant air compressor, pressure regulator, safety relief valves |
Pressurized water is the undisputed standard for heavy-duty industrial applications. If a membrane ruptures during a water squeeze, the water simply leaks into the filtrate line, and system pressure drops to zero immediately. If a membrane ruptures during an air squeeze, the rapidly expanding gas can blow the plate pack apart, ejecting shrapnel and slurry across the facility.
After the squeeze phase completes, the pressure behind the membranes is relieved. The water drains back into the holding tank. However, the center feed shoe still contains wet, unfiltered slurry. Operators initiate a core blow sequence. Compressed air is injected directly into the feed line. This air purges the remaining wet slurry out of the core and pushes it back into the feed tank. Once the core is clear, the hydraulic cylinder retracts. The press opens, and the highly compressed, dry cakes fall into the discharge bunker below.
The effectiveness of the squeeze phase depends entirely on the physical properties of the membrane material and the structural arrangement of the plate pack. Selecting the wrong material leads to premature fatigue, chemical degradation, and catastrophic plate failure. Selecting the wrong configuration wastes capital expenditure without delivering proportional performance gains.
A PP membrane filter plate offers a rigid, highly durable structure. Manufacturers produce these plates in two distinct styles: fully welded and replaceable. Fully welded plates fuse the membrane directly to the core plate. If the membrane fails, the entire plate must be discarded. Replaceable designs utilize a separate membrane sheet that locks into a groove on the core plate, allowing maintenance teams to swap the surface while retaining the expensive core.
A rubber membrane filter plate provides superior flexibility and stretch. These plates almost exclusively use a replaceable elastomer membrane (such as EPDM or NBR) stretched over a steel, aluminum, or heavy-duty polymer core.
Facilities must decide how to arrange the plates within the press frame. This decision directly impacts the initial capital cost and the final moisture content of the cake.

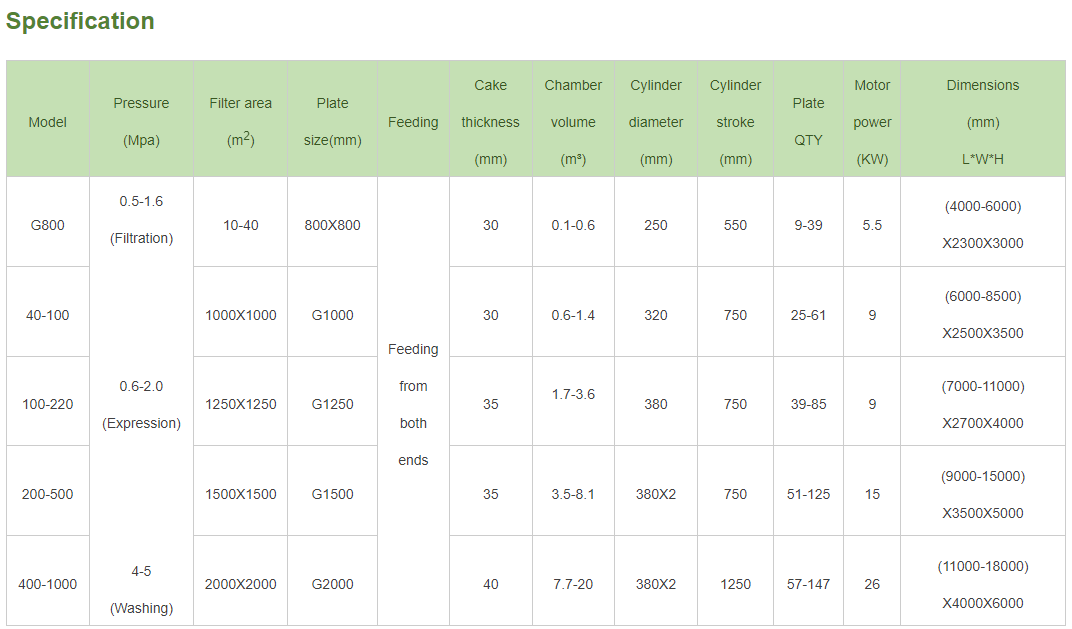

Standard membrane presses operate at squeeze pressures between 7 and 10 bar. For many municipal and standard industrial applications, this provides adequate moisture reduction. However, certain materials hold water with immense capillary force. Breaking that surface tension requires significantly greater mechanical energy.

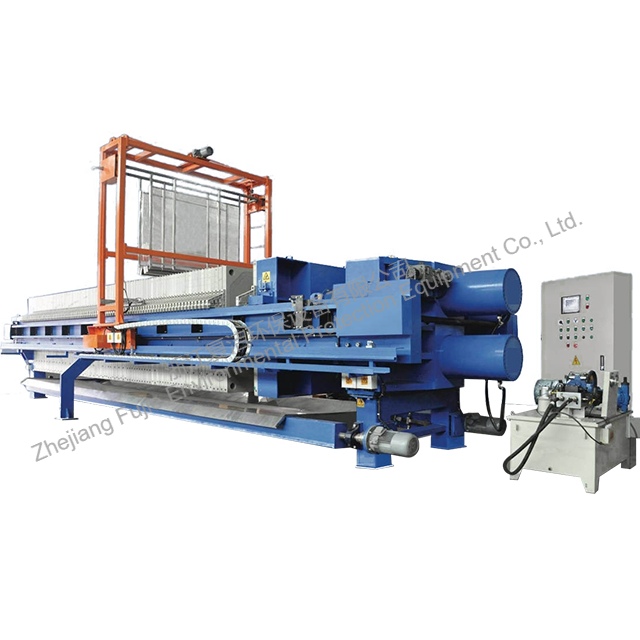

A high pressure membrane filter press operates at squeeze pressures ranging from 15 to 30 bar, and sometimes higher in specialized mining applications. These extreme pressures overcome the strong capillary forces holding water inside fine particulates. Standard polypropylene plates would shatter instantly under these loads. High-pressure plates utilize specialized internal geometries, thicker web profiles, and reinforced materials to withstand the massive stress.
High-pressure systems are not necessary for easily dewatered materials like coarse sand or fibrous organic waste. They are mandatory for challenging, ultra-fine particulates. Mining tailings often contain sub-micron clay particles that retain stubborn moisture. Chemical processing generates complex, highly compressible sludges. Advanced sludge dewatering in metallurgical plants requires high pressure to achieve the strict dryness levels required for landfill compliance or downstream smelting operations.
Operating a filter press at 30 bar requires a complete structural overhaul of the equipment. You cannot simply install high-pressure plates into a standard frame. The entire system must be engineered to support the load.
The increased upfront cost of high-pressure hydraulics and specialized plates is substantial. However, the operational savings consistently justify the investment in high-volume applications. Drier cakes mean fewer hauling trucks leaving the facility each week. They drastically reduce the natural gas or electricity required for downstream thermal drying. Furthermore, a high-pressure squeeze phase optimizes the overall cycle time. Instead of running a feed pump for two hours at low efficiency to pack the chamber, operators can run the feed pump for 45 minutes and follow it with a rapid 15-minute high-pressure squeeze. This increases overall daily throughput and reduces wear on the feed pumps.
Transitioning from standard recessed chamber technology to membrane technology introduces specific operational challenges. Facilities must adapt their maintenance protocols, upgrade their control systems, and train their operators to prevent severe equipment damage.
This is the single most critical operational risk associated with membrane filter presses. Inflating membranes in partially filled or completely empty chambers leads to immediate disaster. The membrane is designed to press against a solid cake of material. If the chamber is empty, the membrane stretches across the void until it exceeds its elastic limit. This causes severe plate deformation, membrane rupture, or catastrophic failure of the plate web. Operators must implement strict feed-pressure monitoring. Automated safety interlocks must prevent the squeeze sequence from initiating if the target feed pressure is not reached during the fill phase.
Membrane presses require advanced Programmable Logic Controller (PLC) integration. Manual operation relies on operator guesswork, which is inefficient and highly risky. Modern systems utilize magnetic flow meters on the filtrate discharge line. The PLC monitors this flow rate continuously. When the flow drops below the programmed setpoint, the PLC automatically halts the feed pump, closes the isolation valves, and triggers the squeeze water pump. This automation optimizes cycle times, ensures consistent cake dryness, and completely eliminates the risk of an operator triggering a squeeze on an empty chamber.
Membranes are consumable components. They flex under high pressure during every single cycle. Over time, the material experiences fatigue, hardens, and eventually cracks. Operators must acknowledge this reality and plan for it. Establish predictive maintenance schedules based on total cycle counts. A standard PP membrane might last 10,000 to 20,000 cycles depending on operating parameters. Select replaceable-membrane designs rather than fully welded plates. This allows maintenance teams to swap out the flexible surface during scheduled downtime without discarding the expensive core plate, significantly lowering long-term operational expenses.
Many facilities attempt to retrofit existing standard presses with membrane plates to save money. This requires a rigorous structural and hydraulic assessment by a qualified engineer. An existing frame may not safely accommodate the increased internal forces. The hydraulic cylinder might lack the holding pressure required, leading to dangerous blowouts. Additionally, the facility must install new plumbing manifolds, valves, and water tanks for the squeeze fluid. In many cases, the cost of retrofitting an old frame approaches the cost of purchasing a purpose-built membrane press.
Theoretical moisture reduction calculations are entirely insufficient for capital expenditure approval. Slurry variability, particle size distribution, chemical composition, and compressibility change drastically from site to site. A slurry in one plant may behave completely differently than a seemingly identical slurry in another plant. Empirical data is mandatory.
Relying on generic data sheets leads to undersized equipment, missed moisture targets, and operational bottlenecks. Real-world testing eliminates this risk. It provides concrete, site-specific data for accurate equipment sizing, pump selection, and financial ROI modeling.
Validation occurs in two distinct phases. Both are critical for successful implementation and risk mitigation.
During pilot testing, operators must document specific data points meticulously. Record the incoming feed density, pH, and temperature. Identify the optimal squeeze pressure and the exact duration required to reach maximum liquid displacement. Monitor filtrate clarity continuously to ensure the selected filter cloth prevents solids bleed-through. Finally, measure the exact final cake solids percentage using a moisture analyzer. These metrics form the absolute foundation of the final equipment specification and purchase order.
A membrane filter press is the definitive choice when downstream disposal costs, thermal drying requirements, or product recovery values outweigh the initial equipment investment. Secondary mechanical compression overcomes the physical limits of standard feed pumps, delivering consistently drier cakes and shorter cycle times. Base your final equipment selection on empirical data regarding required squeeze pressure, chemical compatibility, and optimal pack configuration.
Take the following steps to advance your dewatering project:
A: A recessed chamber press relies solely on the feed pump to push liquid through the filter cloth. A membrane press adds a secondary mechanical squeeze. It inflates flexible plates with pressurized water or air to physically compress the cake, forcing out trapped interstitial moisture that pumps cannot remove.
A: Moisture reduction varies heavily by material and particle size. However, membrane presses typically achieve 10% to 30% lower final moisture content compared to standard recessed chamber presses. This significant reduction drastically lowers downstream hauling and thermal drying costs.
A: Pressurized water is strongly recommended for safety and performance. Water is incompressible. If a plate fails, pressure drops safely and instantly. Compressed air stores massive kinetic energy and poses a severe explosion risk. Air is strictly limited to low-pressure applications under 7 bar.
A: Standard membrane presses operate between 7 and 10 bar. High-pressure systems operate between 15 and 30 bar. Some specialized mining applications even exceed 30 bar to extract stubborn capillary moisture from ultra-fine clay particulates and metallurgical sludges.
A: Choose Polypropylene (PP) plates for highly corrosive environments, high temperatures, or applications requiring strict sanitation. Choose rubber membranes when you need maximum elasticity, extreme mechanical compression, or are processing highly abrasive slurries that would wear down rigid plastics.
A: A mixed pack alternates one membrane plate with one standard recessed chamber plate throughout the press frame. When inflated, the membrane compresses the cake in both adjacent chambers. This configuration reduces initial equipment costs while still delivering excellent moisture reduction.
A: Sometimes, but it requires a strict engineering assessment. The existing frame and hydraulic cylinders must be strong enough to withstand the increased internal separating forces. You must also install new plumbing manifolds, valves, and pumps to deliver the squeeze fluid safely.
